Purpose: This exercise will cover the basic procedures for 3D machining using OneCNC. A simple 3D mold cavity will be created, andET 449
3D Machining: Simple Mold
LABORATORY 7
Objectives: After completing this exercise you should be able to perform the following:

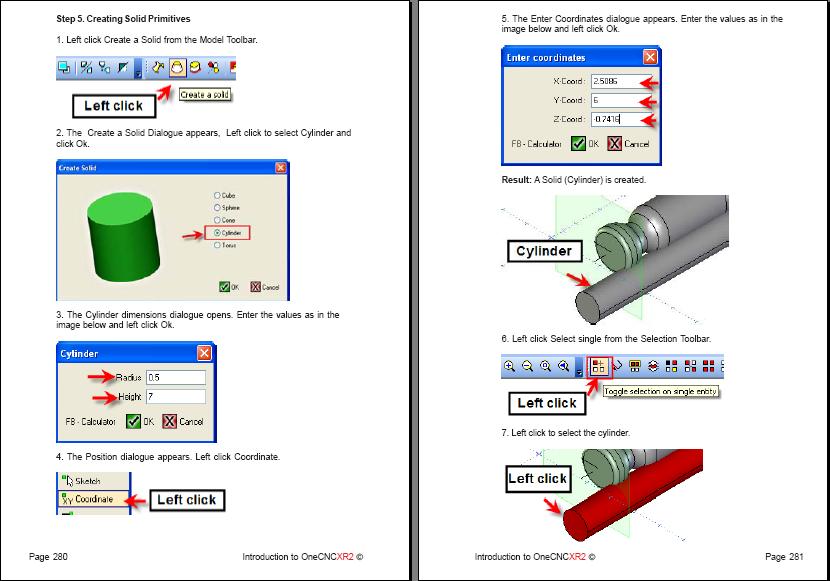

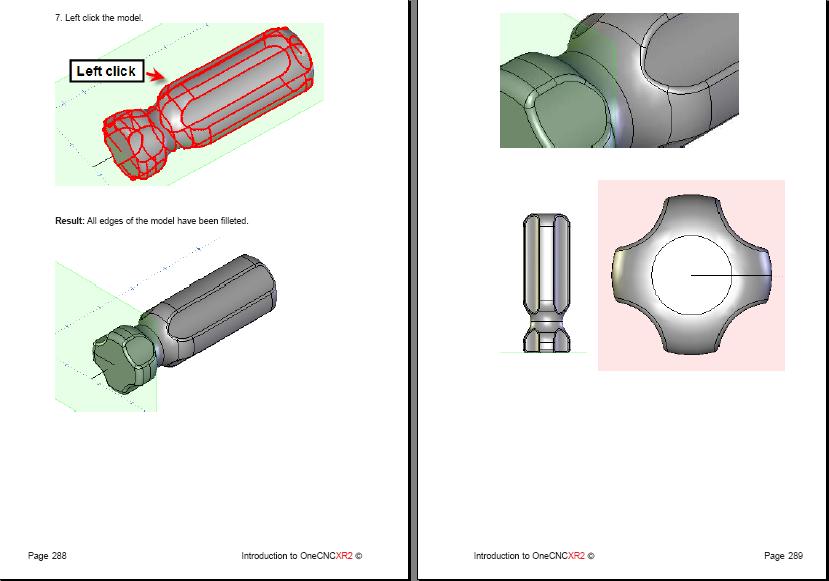

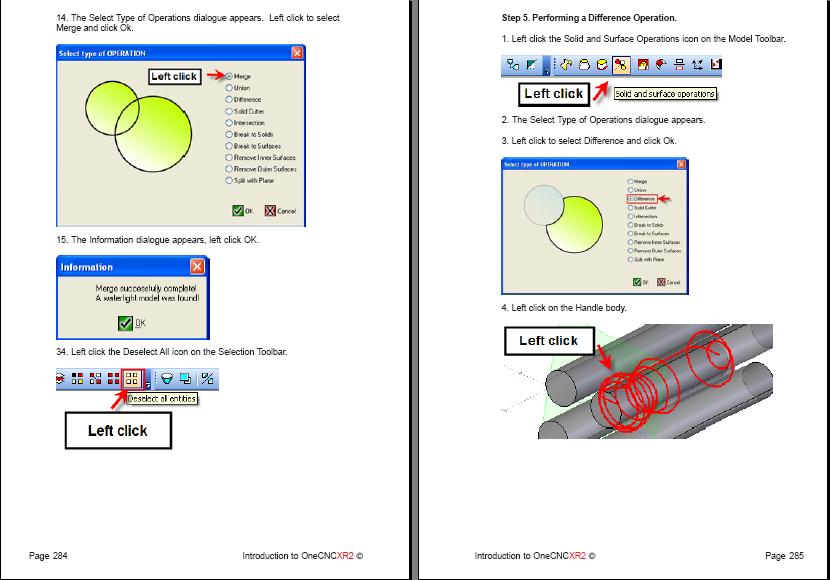

1. Created a 3D model for a simple mold cavity
2. Edit the file for delineating required geometry
3. Set the coordinate system for 3D Machining
4. Select the geometry for roughing and finishing
5. Specify tooling information required
6. Modify cut control as necessary

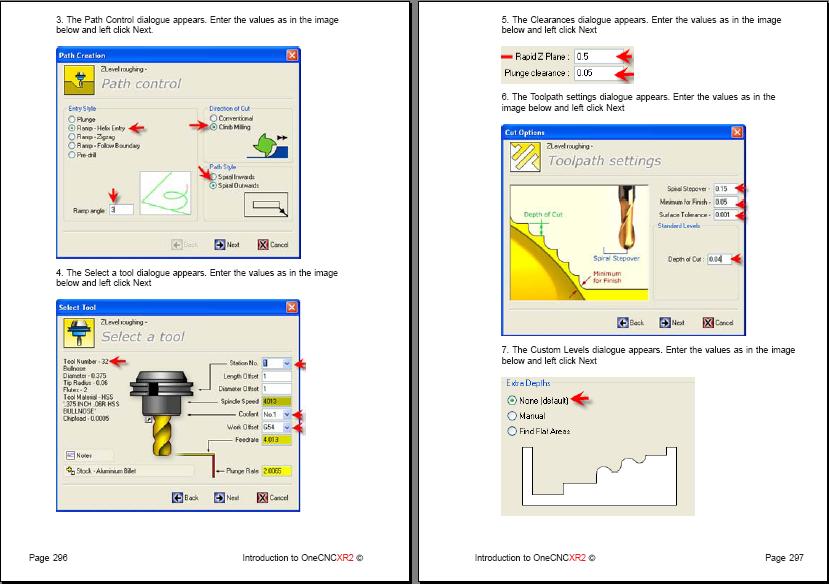

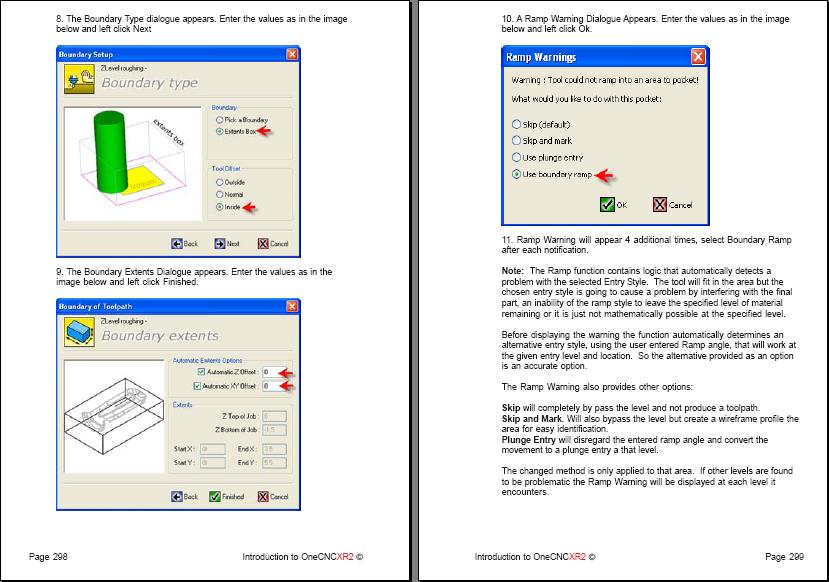

7. Generate a tool path for the part specified
8. Post process tool path for a HAAS mill
9. Save the file as a PLAIN ASCII format

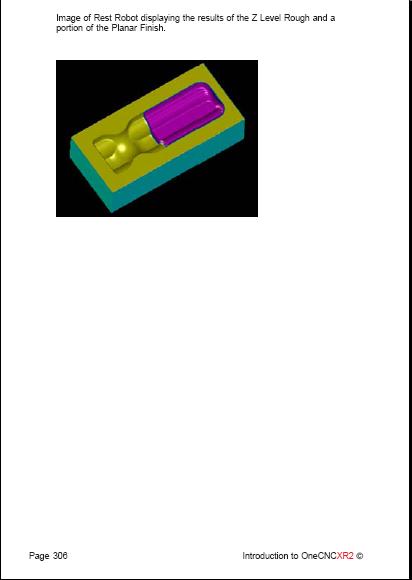

10. Run a graphic simulation for the 3D machining
tool path.
Procedures:

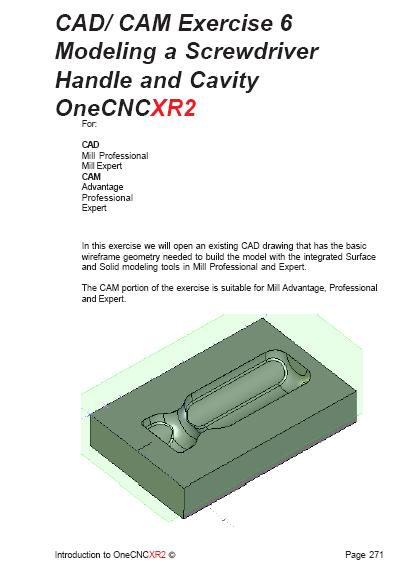

1. Complete the following OneCNC tutorial for producing a simple
mold.

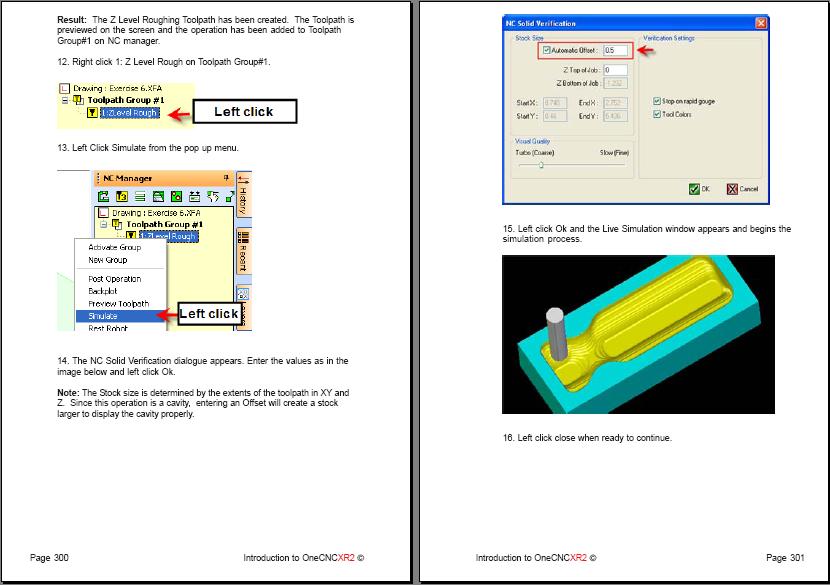

2. Run a simulation to verify the tool path
3. Have your instructor sign of for verification that the exercise
was completed
4. Write a lab report using the standard format. (Note only submit
the first page of the actual code!)
